Mechanical Test Equipment
Mechanical Test Equipment
Mechanical Test
Mechanical Test Equipment and Applicable Standards
Quantity: 3
28046.3; GB/T 2423.59; GB/T 2423.102
Mechanical Impact Equipment

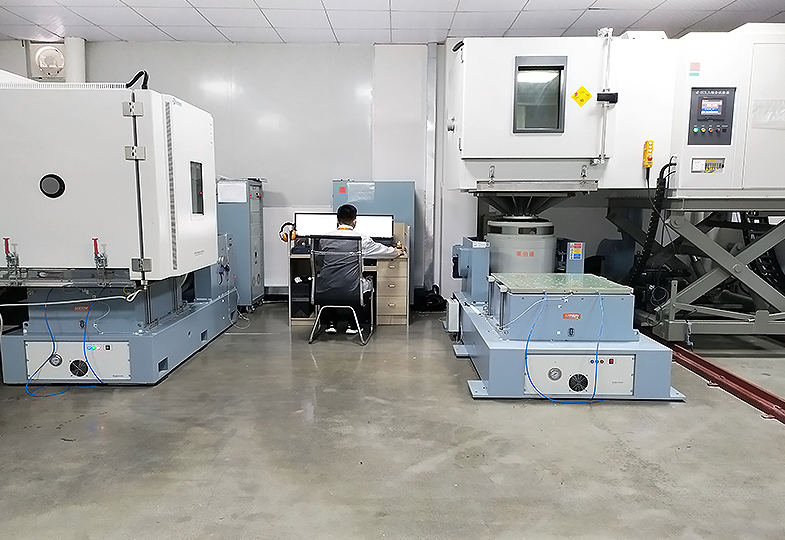

Three Synthesis Test Equipment
Temperature range: -40~+150℃
Humidity range: 20~95%
Vibration: sinusoidal vibration or random
vibration
Vibration table-board dimension（L*W）:
800*800mm (horizontal）
800*800mm（vertical）
Main reference standards: ISO 16750-3; GB/T

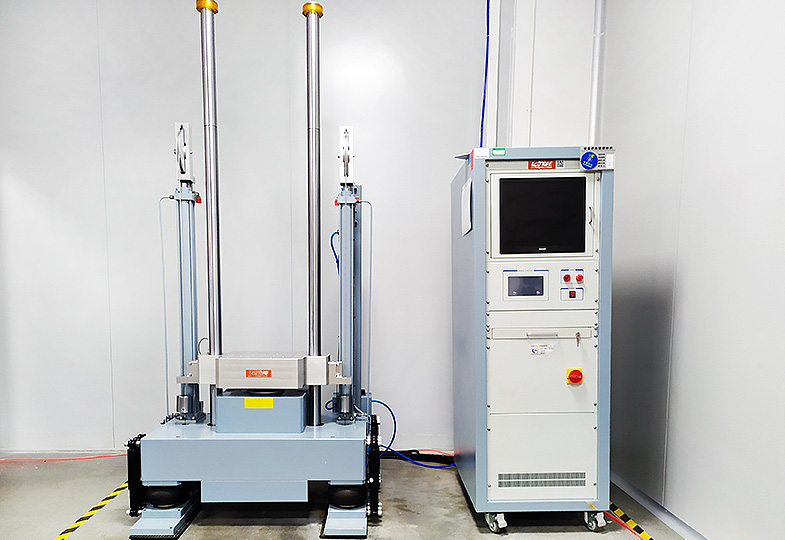

Maximum impact acceleration: 500G
Pulse width time: 1~30ms
Wave form: half sine/square wave
Platform dimension: 400*400mm
Main reference standards: GB/T 2423.5; IEC 60068-2-27

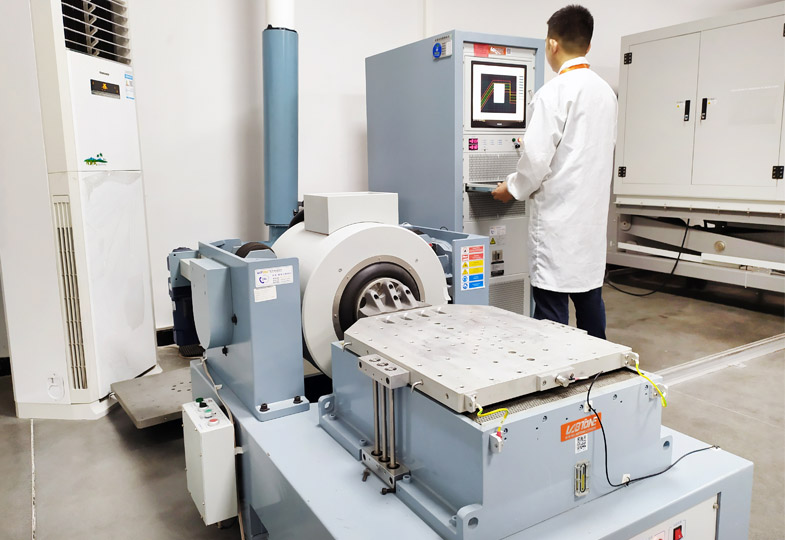

Vibration Mechanical Impact Test Equipment
Quantity: 5
Vibration: sinusoidal vibration/random vibration;
sinusoidal random compound vibration
Vibration table-board dimension（L*W）:
700*700mm(horizontal）
600*600mm（vertical）
Main reference standards: GB/T 2423.10; IEC 60068-2-6; GB/T 2423.56; IEC 60068-2-64
